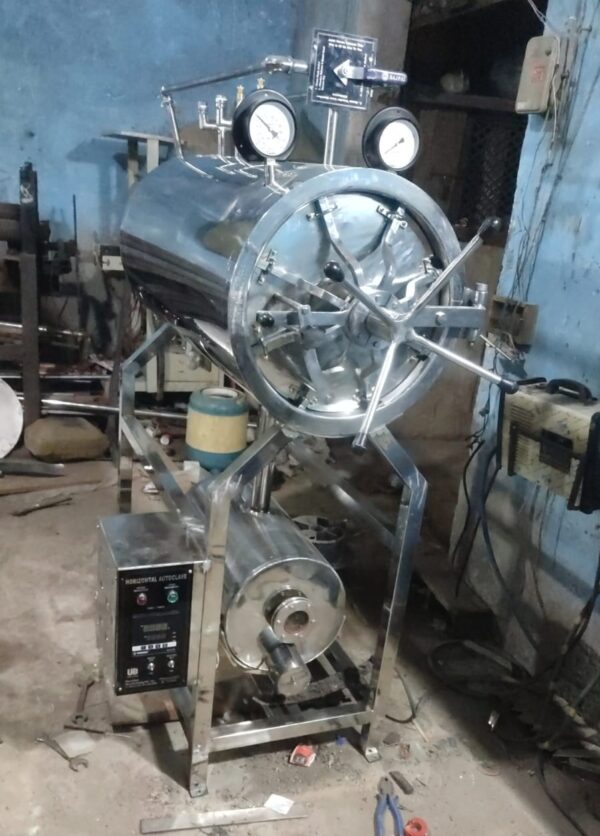

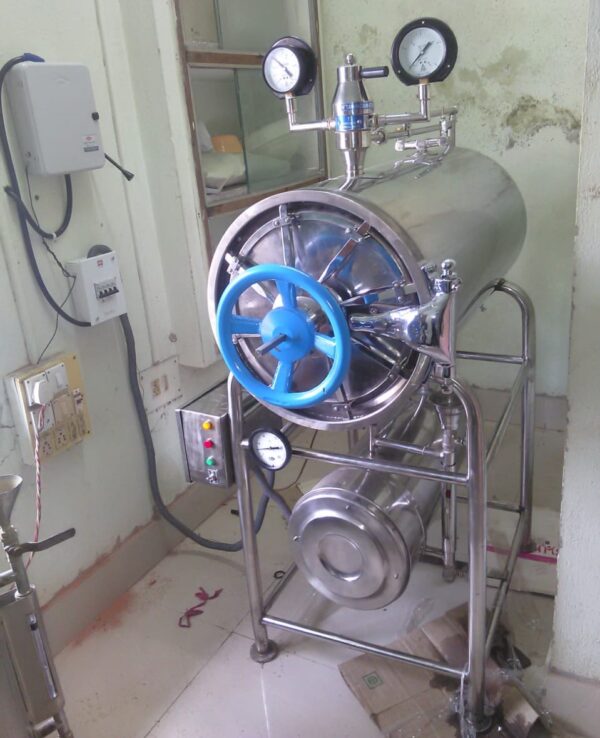

Autoclave Horizontal Steam Sterilizer
Autoclave Horizontal Steam Sterilizer
Specification:
| Inner
dimension (inch) |
Capacity
(Litres) |
Heater
load |
Sterilization temp &
pressure |
Operating
pressure |
| 16”x 24” | 80 | 6 kW | 1.2 Kg/cm2 (15- 18psi) at
121°C |
From 10 psi to 20
psi |
| 18” x 24” | 100 | 6 kW | ||
| 16” x 36” | 125 | 9 kW | ||
| 22” x 30” | 185 | 12 kW | ||
| 20’’x36’’ | 200 | 12 kW | ||
| 20” x 48” | 250 | 12 kW | ||
| 24” x 48” | 350 | 14 kW |
TRIPLE SAFETY: The sterilizer is provided with triple safety.
(a) By a pressure control switch which automatically limits the pressure to the required Set valve.
(b) Two spring loaded safety valves one each at chamber and boiler level.
(c) A dead weight safety valve at chamber level.
A PLUG SCREEN prevents the discharge line from choking. The plug is easily removable for routing cleaning.
A powerful Ejector (for drying sterilized linen) circulates air through the chamber. The circulating air passes through a corrosion resistant metal wool filter.
A Digital is provided to show the chamber temperature.
AUTOMATIC VACUUM BREAKER is provided to break vacuum case of vacuum formation due to steam condensation.
Operating Temperature and pressure:–
Sterilizing Temp. : 121°C
Sterilizing Pressure: 1.2, (17 psi to 22 psi)
