Cleanroom Air Shower

Cleanroom Air Shower

1. Ergonomic design for versatile usage, ease of use, plug & play system. Designed so as to meet the requirements of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100 conditions

2. International Standards – UK Complied Certifications – ISO 9001:2015, CE. GMP.

3. Company is under Make in India & MSME Certified with International standard, certified model with duly mentioned brand name. Internal IQ/OQ/PQ Certification

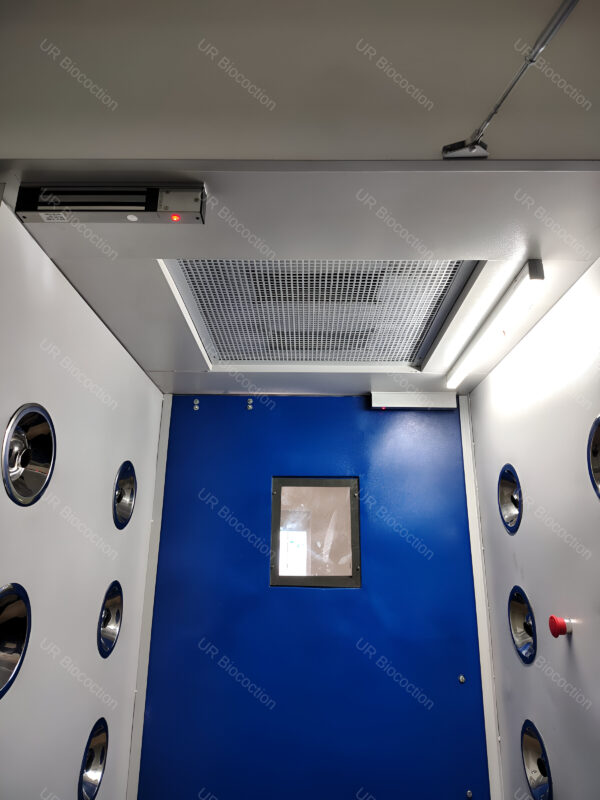

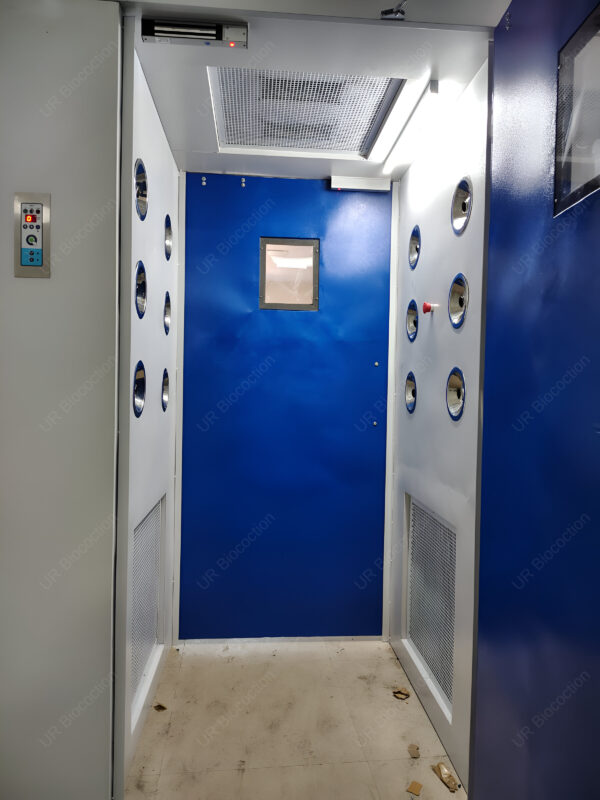

4. Material Handling Air Shower are -auto Controlled interlocking systems for entrance, such that the entry and exit doors are electronically interlocked and photoelectric sensor suited self- contained units, installed at the entrance of a clean room and other controlled environment chambers for minimizing the entry of dust particles and other particulate matters into the working area. Its principle of operation is the impulsion of jets of Heap – filtered air at high speed on the person or material to be cleaned to produce the separation of the particles deposited on its surface. The contaminated air is again filtered and re- circulated. With-in seconds, the person entering into air shower comes out entirely cleans i.e. free from harmful dust. In any case, it is important to highlight that the most convenient to achieve maximum effectiveness is an enclosure for individual use in which the useful space must not exceed 80 – 90 cm

5. 3 types of configurations are available:-

·         One side flow: The unit allows one-way operation, with the clean side door locked and the grey side door unlocked at the idle state. This mode of operation helps in controlling the flow of traffic in and out of the clean room for maintaining maximum sterility in the working area.

·         Two side flow: The unit allows both side flows, allowing the air showers to be activated in both the directions. The user can exit through the clean room door or the grey side door, without compromising the sanctity of the clean air environment. This mode of operation prevents the egress of harmful contaminants from the clean room to the outside environment, making the unit particularly useful in pharmaceutical industries, animal research laboratories and other applications that require working with harmful and bio hazardous substances.

·         Tower flow: the flow is from the upper roof of the shower.

3 Filtration Assembly: –

·         Profiler is made from Non-Woven Synthetic with HDPE mesh and Al expanded mesh on air leaving side; conforms to EU – 4 / G-4 Grade, with the efficiency of down to 10 microns. These filters can be cleaned by compressed air & also washable.

• HEPA Filters Mini pleat type, made from water-resistant, fire retardant, imported micro-fine glass fiber media; conforms to EU – 14 Grade, with an efficiency rating better than 99.999% for 0.3 μ. These filters are designed to accommodate higher air flow volume.
