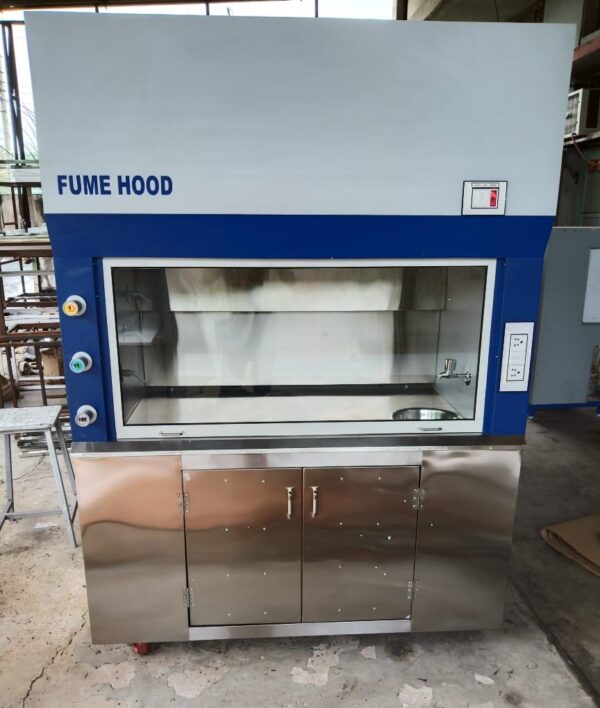

Fume Cupboard Full SS
SIZE OF THE MACHINE: –
| Sl. No. | Size Inner Chamber |
| 1 | 2x2x2 ft. |
| 2 | 3x2x2 ft. |
| 3 | 4x2x2 ft. |
| 4 | 6x2x2 ft. |
• Ergonomic Design for Versatile Usage, ease of use, plug & play system.
• International Standards – UK Complied Certifications – ISO 9001:2015, CE. GMP.
• Company is under Make in India & MSME Certified with International standard, certified model with duly mentioned brand name. Internal IQ/OQ/PQ Certification
• Material Construction: Inner & Outer Stainless steel (Full SS)
• Working Chamber Size : 2x2x2 ft. / 3 x 2 x 2 f t / 4 x 2 x 2 f t ( C h o o s e s i z e )
• Digital Model. Caster Wheel to hood.
• Work Table Top: Inner Stainless steel SS – 304, 22 SWG TATA/JSL make.
• Sink with Water tap with drain arrangement – All are SS – 304 materials.
• Work Base – SS 304
• Air Suction Capacity: 800-1000 CFM confirming to international (0.5mtr/sec) face velocity norms and as per safe fume hood airflow pattern.
• statically balanced motor blower Assembly (Heavy Duty), 1440 rpm, 1⁄4 hp. Noise of the blower is less than 55 dBA & Very low vibration, internally built in.
• Front door moves vertically up-down with concealed counter balanced weights.
• FL Illumination light inside for clear view and working.
• Microprocessor based PID controller with LCD Display for Air flow FL light on – off, Blower 3 speed control High, Low, and Medium.
• Fluorescent light – 20 watt, ˃800 lux, with chokes for lighting
• Power supply – 220-230 V, 50-60 Hz, 5/15 amps power cord.
