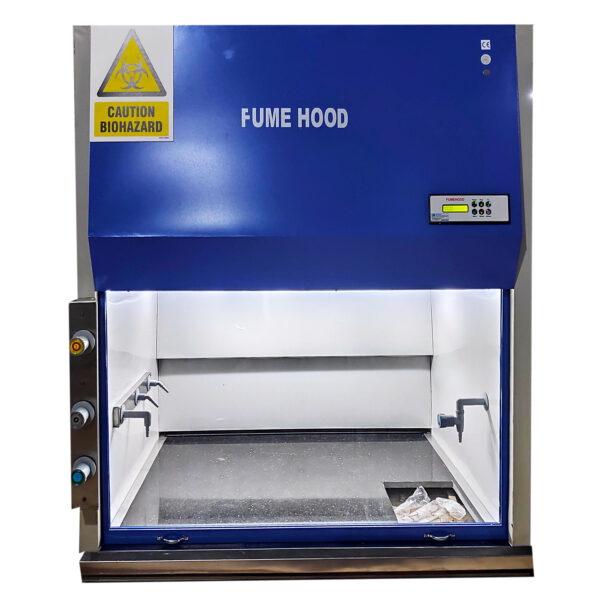

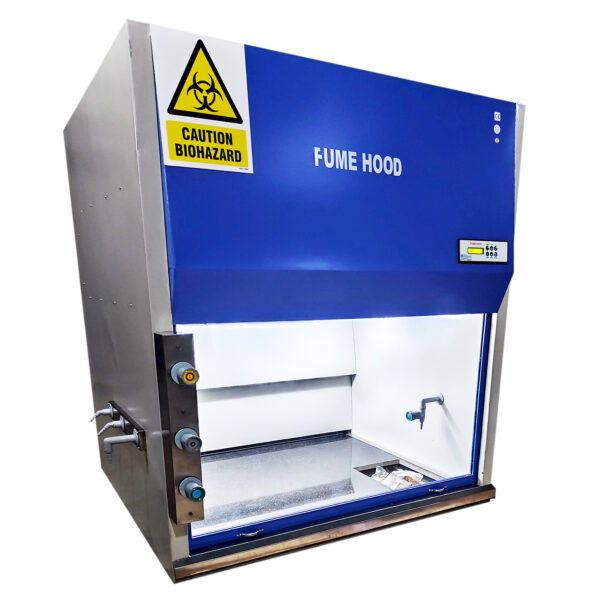

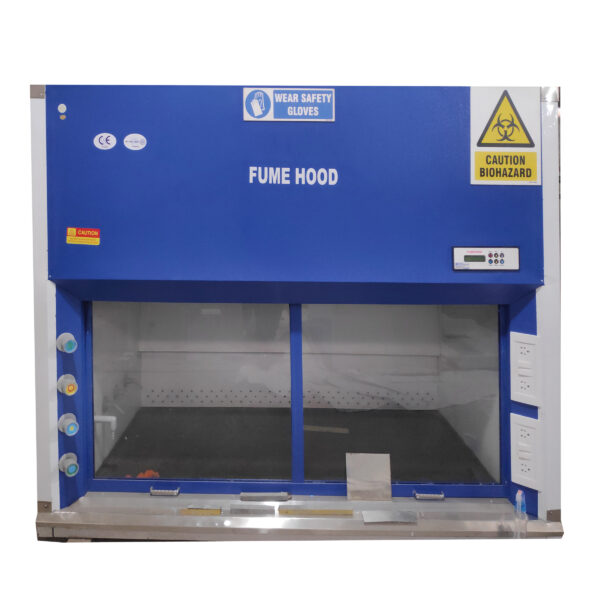

Fume Hood MS – SS

Fume Hood MS – SS

SIZE OF THE MACHINE: –

 Ergonomic Design for Versatile Usage, ease of use, plug & play system.

 International Standards – UK Complied Certifications – ISO 9001:2015, CE. GMP.

 Company is under Make in India & MSME Certified with International standard, certified model with duly mentioned brand name. Internal IQ/OQ/PQ Certification

 Material Construction: Outer Body- CRCA Sheet epoxy Powder coated.

 Working Chamber Size : 2x2x2 ft. / 3 x 2 x 2 f t / 4 x 2 x 2 f t

 Digital Model. Caster Wheel to hood.

 Work Table Top: Inner Stainless steel SS – 304, 22 SWG TATA/JSL make.

 Sink with Water tap with drain arrangement – All are SS – 304 materials.

 Work Base – SS 304

 Air Suction Capacity: 800-1000 CFM confirming to international (0.5mtr/sec) face velocity norms and as per safe fume hood airflow pattern.

 statically balanced motor blower Assembly (Heavy Duty), 1440 rpm, 1⁄4 hp. Noise of the blower is less than 55 dBA & Very low vibration, internally built in.

 Front door moves vertically up-down with concealed counter balanced weights.

 FL Illumination light inside for clear view and working.

 Microprocessor based PID controller with LCD Display for Air flow FL light on – off , Blower 3 speed control High, Low, Medium.

 Fluorescent light – 20 watt, ˃800 lux, with chokes for lighting

 Power supply – 220-230 V, 50-60 Hz, 5/15 amps power cord.
