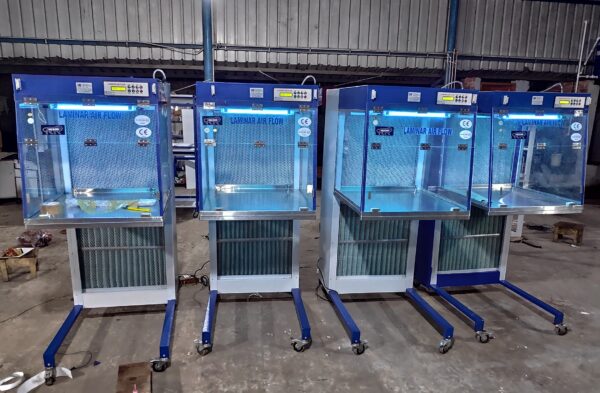

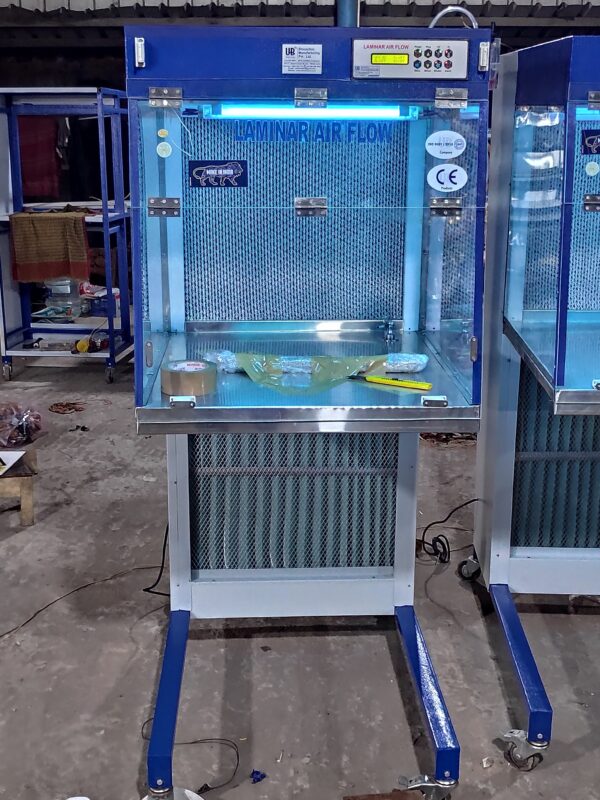

Horizontal Laminar Airflow

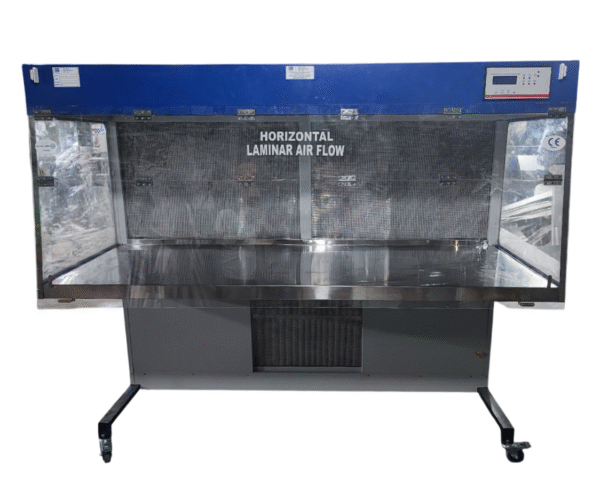

Horizontal Laminar Air Flow
SIZE OF THE MACHINE –
| Code | Size | Size of HEPA Filter | NO Of HEPA Filter |
| A | 2x2x2 | 2’x2’x6” | 1 |
| B | 3x2x2 | 3’x2’x6” | 1 |
| C | 4x2x2 | 4’x2’x6” | 1 |
| D | 6x2x2 | 3’x2’x6” | 2 |
| F | 8x2x2 | 4’x2’x6” | 2 |
1. Ergonomic design for versatile usage, ease of use, plug & play system. 2. Designed so as to meet the requirements of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100 conditions 3. International Standards – UK Complied Certifications – ISO 9001:2015, CE. GMP. 4. Company is under Make in India & MSME Certified with International standard, certified model with duly mentioned brand name. Internal IQ/OQ/PQ Certification 5. Material of Construction: – Outer Body- CRCA Sheet epoxy Powder coated antibacterial & Antirust effect, 22 gauge OR Stainless Steel-304PVC /Matt grit/ Sattin finish, 22 GAUGE 6. Work table top:-SS-304, PVC /Matt grit/ Sattin finish, 22 GAUGE 7. Front door and side covered with UV – protected 5 mm Acrylic sheet to protect customer from UV Exposure – complete transparent. Permanent magnet to hold 8. Air flow type: – Horizontal Air flow from the front. 9. Air Flow Velocity: – 90 FPM ±20%, Inflow Velocity: 0.53 m/s, Down flow Velocity: 0.33m/s 10. Statically balanced motor blower Assembly (Heavy Duty), 1440 rpm, 1⁄4 hp. Noise of the Blower is less than 55 Dba & Very low vibration 11. i. Prefilter is made from Non-Woven Synthetic with HDPE mesh and Al expanded mesh on air leaving side; conforms to EU – 4 / G-4 Grade, with the efficiency of down to 10 microns. These filters can be cleaned by compressed air & also washable. ii. HEPA Filteris Mini pleat type, made from water- resistant, fire retardant, imported micro-fine glass fiber media; conforms to EU – 14 Grade, with an efficiency rating better than 99.999% for 0.3 μ. These filters are designed to accommodate higher air flow volume. iii. Perforated diffuser screen /shield mesh guard protect Filters from damage. 12. Electricals fittings & Fixtures: – i . Microprocessor based PID Controller – UV ON-OFF, UV-Timer, Blower 3 speed control – High, Low, Medium, and Display of UV Age. ii. Fluorescent light – 20 watt, ˃800 lux, with chokes for lighting iii. UV Light – 15 watt, Philips make 13. Power supply -220-230 V, 50-60 Hz, 5/15 amps power cord.
