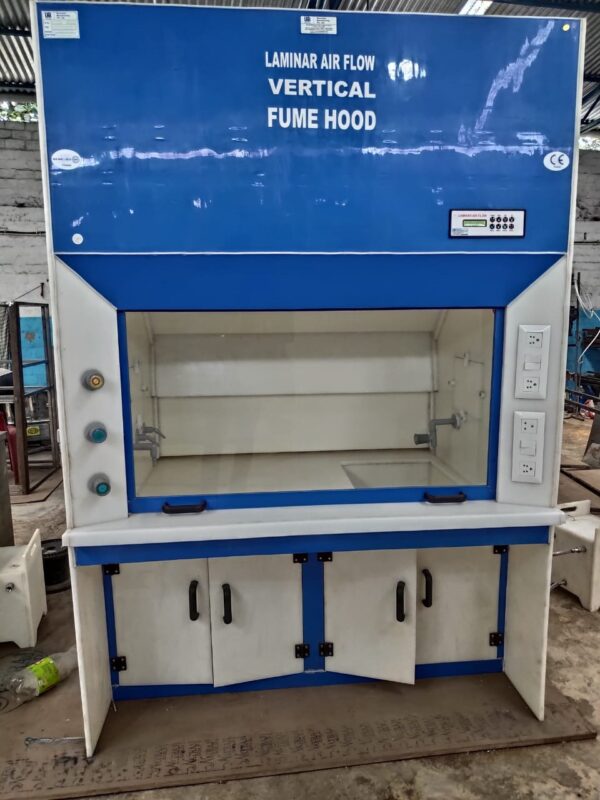

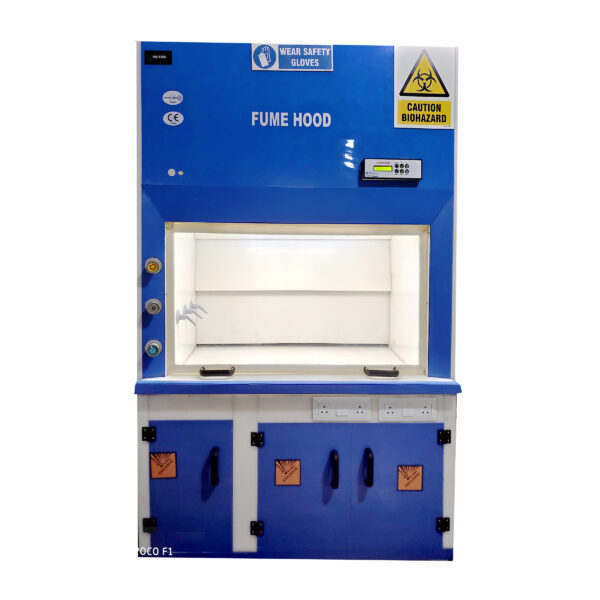

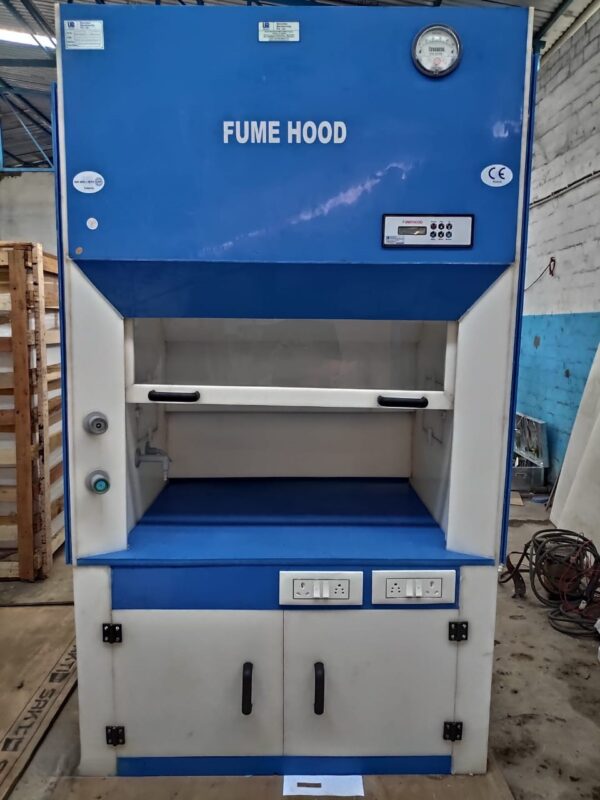

PP Fume Cup Board
1. Ergonomic design for versatile usage, ease of use, plug & play system.
2. International Standards – UK Complied Certifications – ISO 9001:2015, CE. GMP. 3. Company is under Make in India & MSME Certified with International standard,
certified model with duly mentioned brand name. Internal IQ/OQ/PQ Certification
4. Material of Construction: – 100% POLYPROPYLENE CHEMICAL RESISTENT Including
worktable also. Make by PP welding and screwing mechanism. All the handles and hinges
are made of Polyamide chemical resistant materials.
5. Front door: – Counter balanced weight with 5
mm toughened/tempered glass UV – protected to
protect customer from any Exposure – complete
transparent along with base structure to hold the
cabinet & ease of access
6. Air flow type: – Auto Bypass Type ,Design-
Aerodynamic
7. Baffle arrangement: – Interstitial 3-point
suction system (for light, normal & heavy fumes)
with baffle to ensure smooth and immediate exhaust
of fumes. Baffle with Additional holes for better
suction. Plenums are designed and adjusted
ergonomically.
8. Front SS -304, Hand rest/Air foil with suction
point below & Door top suction point.
9. Centrifugal Blower: Silent high efficiency
remote blower, consisting of continuous rating
motor and chemical resistant impeller.
10. Air Suction Capacity: 800-1000 CFM
confirming to international (0.5mtr/sec) face
velocity norms and as per safe fume hood airflow
pattern.
11. Statically balanced motor blower Assembly
(Heavy Duty), 1440 rpm, 1⁄4 hp. Noise of the blower is less than 55 dBA & Very low
vibration, internally built in.
12. Sink with Water tap with drain arrangement – All are PP Materials.
13. 3 OR 4 NOS Service Valves – Water/Air/Nitrogen/Gas/Vacuum – remotely controlled
with internal and external inlet and outlet nozzles, colour coded – Completely PP Coated
14. Top removable panel for easy access to electrical fittings and easy removable fittings
placement for ease of access during service.
15. Level adjusting screws:- Made of SS Bolts to adjust the fume hood level by approx. +
10 mm
16. Exhaust Port:- Top/Side – Smooth exhaust without any turbulence , PVC L bent
supplied along with the machine for exhaust connection from the Lab
17. Apparatus/Chemical Storage Base Cabinet :-Base cabinet ready to receive the fume
hood at its top with following features:
I. Complete rigid structure to support Fume hood.
II. Epoxy powder coated rigid structure.
III. Front and back door for ease of access towards storage materials
IV. Hinged doors – Front Opening
V. Side shelves for storing of consumables
18. Electricals fittings & Fixtures: – I. Microprocessor based PID Controller –FL light ON-OFF, Blower 3 speed control –
High, Low, Medium.
II. Fluorescent light – 20 watt, ˃800 lux, with chokes for lighting
III. 1/2/3 set of electrical panels –each consist of 2 nos of 5/15 amp plug points with
switches
19. Power supply – 220-230 V, 50-60 Hz, 5/15 amps power cord.
SIZE OF THE MACHINE:-
CODE Size(ft) NO Of Blower Unit
A 2x2x2 1
B 3x2x2 1
C 4x2x2 1
D 6x2x2 2
E 8x2x2 3
Optional Accessories:- Filtration Assembly: – i. Prefilter is made from Non-Woven Synthetic with HDPE mesh and Al expanded
mesh on air leaving side; conforms to EU – 4 / G-4 Grade, with the efficiency of
down to 10 microns. These filters can be cleaned by compressed air & also
washable.
ii. HEPA Filter is Mini pleat type, made from water-resistant, fire retardant,
imported micro-fine glass fiber media; conforms to EU – 14 Grade, with an
efficiency rating better than 99.999% for 0.3 μ. These filters are designed to
accommodate higher air flow volume.
iii. Perforated diffuser screen /shield mesh guard protect Filters from damage. Caster wheels with self-locking. Grid/Scaffolding/ monkey bar- for holding apparatus Microprocessor-based digital controller with LCD display Or Touch screen Controller
with air velocity sensor and digital display of air velocity across the worktable Real Time clock, Splash proof electrical socket External Calibration certificates SCRUBBER UNIT WITH EXTERNAL BLOWER SYSTEM – COMPLETE SYSTEM
WET SCRUBBER / DRY SCRUBBER
