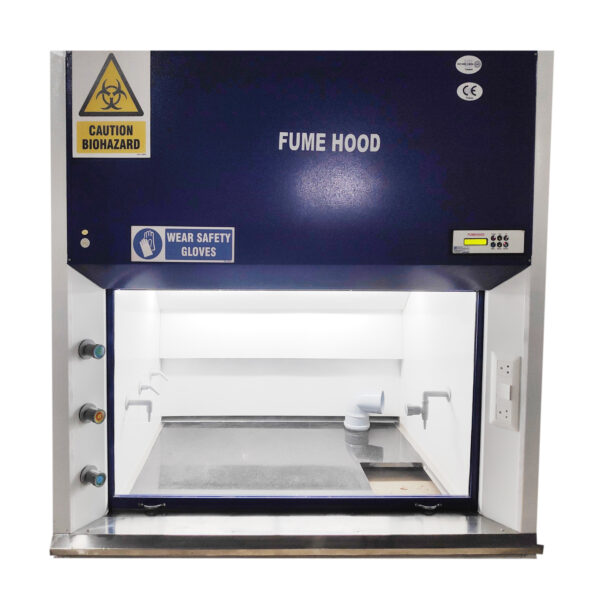

Fume Hood – PP
SIZE OF THE MACHINE:-
| CODE | Size(ft.) | NO Of Blower Unit |
| A | 2x2x2 | 1 |
| B | 3x2x2 | 1 |
| C | 4x2x2 | 1 |
| D | 6x2x2 | 2 |
| E | 8x2x2 | 3 |
1. Ergonomic design for versatile usage, ease of use, plug & play system.
2. International Standards – UK Complied Certifications – ISO 9001:2015, CE. GMP.
3. Company is under Make in India & MSME Certified with International standard, certified model with duly mentioned brand name. Internal IQ/OQ/PQ Certification
4. Material of Construction: – 100% POLYPROPYLENE CHEMICAL RESISTENT including worktable also. Make by PP welding and screwing mechanism. All the handles and hinges are made of Polyamide chemical resistant materials.
5.Front door: – Counter balanced weight with 5 mm toughened/tempered glass UV – protected to protect customer from any Exposure – complete transparent along with base structure to hold the cabinet & ease of access
6. Air flow type: – Auto Bypass Type, Design- Aerodynamic
7. Baffle arrangement: – Interstitial 3-point suction system (for light, normal & heavy fumes) with baffle to ensure smooth and immediate exhaust of fumes. Baffle with Additional holes for better suction. Plenums are designed and adjusted ergonomically.
8. Front SS -304, Hand rest/Air foil with suction point below & Door top suction point.
9. Centrifugal Blower: Silent high efficiency remote blower, consisting of continuous rating motor and chemical resistant impeller.
10. Air Suction Capacity: 800-1000 CFM confirming to international (0.5mtr/sec) face velocity norms and as per safe fume hood airflow pattern.
11. Statically balanced motor blower Assembly (Heavy Duty), 1440 rpm, ¼ hp.
12. Sink with Water tap with drain arrangement – All are PP Materials.
13.3 OR 4 NOS Service Valves – Water/Air/Nitrogen/Gas/Vacuum – remotely controlled with internal and external inlet and outlet nozzles, color coded – Completely PP Coated
14. Electricals fittings & Fixtures: –
I. Microprocessor based PID Controller –FL light ON-OFF, Blower 3 speed control – High, Low, and Medium.
II. Fluorescent light – 20 watt, ˃800 lux, with chokes for lighting III.1/2/3 set of electrical panels –each consist of 2 nos of 5/15 amp plug points with switches 18. Power supply – 220-230 V, 50-60 Hz, 5/15 amps power cord.
